4.2 Predicted Probabilities

• Although tests of the coefficients are valid to test for overall effects, I do not suggest relying on the coefficients to understand your model
  • Coefficients are limited as a measure of effect size (just as in binary logit)
  • Coefficients rescale across models and thus cannot be used to compare effect size across models (more on this later)
  • There are an overwhelming and highly redundant number of coefficients to consider
• Marginal effects and predicted probabilities are more satisfying, less problematic, and simpler ways to understand nominal models

Predicted probabilities in multinomial logit

• We motivated multinomial logit as a set of binary logits
• \(\mathbf{x}_{i}\boldsymbol{\beta}\) is in log-odds, e.g., Log(Pr_A/Pr_B)
  • We can solve the equations in terms of predicted probabilities
• If y has J total categories 1 to J, let \(\eta\) be the prediction of interest for a specific category j: \(\Pr(y = j\,|\,\mathbf{x})\) which is the predicted probability of category j given certain values of x

\[\eta = \Pr(y = j) = \frac{\exp(\mathbf{x}_{i}\boldsymbol{\beta}_{j|J})}{\sum_{j = 1}^{J}\exp(\mathbf{x}_{i}\boldsymbol{\beta}_{j|J})}\]

• Predicted probabilities and marginal effects in multinomial logit are interpreted as the probability of category j out of all possible categories
  • Numerator is probability of category j
  • Denominator is the sum of the probability of all categories
• You get the same predicted probabilities regardless of the base/reference category you use in the estimation of the model

Plots of predicted probabilities

• Plots—while always recommended—are especially helpful with multiple outcome categories
• As nominal models produce multiple prediction lines, including CIs can sometimes make the plot impossible to read with so many overlapping lines
  • An alternative is to make separate panels for each outcome category (see following examples)
• Always include a legend so the reader knows which line is for which DV category

Stata

Stata builds the plot CIs first, then lines. So, graph aspects 1, 2, and 3 are CIs. To label the lines themselves, start the legend at J + 1 (4 here)

use "https://tdmize.github.io/data/data/cda_gss", clear

(cda_gss.dta |  GSS 1972-2021 CDA - Categorical Data Analysis | date created 202
> 3)

keep if year >= 2016 & year <= 2021

(59,599 observations deleted)

drop if missing(conserv, age, woman, race3, college, married, parent, faminc)

(1,421 observations deleted)

*3 category political views var
qui mlogit polviews3 c.age i.woman i.race3 i.college ///
    i.married i.parent c.faminc i.employed
est store pol3mod
*4.2.a
qui margins, at(age=(18(5)88))
*custom plot with colors to match politics
marginsplot, xlab(18(10)88) ylab(0.1(0.1)0.5) ///
    legend(order(4 "Liberal" 5 "Moderate" 6 "Conservative")) ///
    ytitle("Pr(Political Ideology)") ///
    title("[4.2.a] Pr(Political Ideology) 2016 - 2021", size(medlarge)) ///
    plot1opts(lcol(blue) mcol(blue)) plot2opts(lcol(gs10) mcol(gs10)) ///
    plot3opts(lcol(red) mcol(red)) ///
    ci1opts(recast(rline) lpat(dash) lcol(blue*.3)) ///
    ci2opts(recast(rline) lpat(dash) lcol(gs10*.3)) ///
    ci3opts(recast(rline) lpat(dash) lcol(red*.3))

Variables that uniquely identify margins: age

R

R’s plot_predictions default would hold controls at model person. To get average predictions, need the newdata statement with a “counterfactual” grid_type. Add “group” to the by function to get separate lines for each outcome

library(haven)           # import Stata data and labels
library(dplyr)           # data manipulation
library(ggplot2)         # graphs
library(nnet)            # multinomial logit: multinom()
library(marginaleffects) # predictions and marginal effects
library(cleanplots)      # graph scheme
cleanplots_defaults()

gss <- read_dta("https://tdmize.github.io/data/data/cda_gss.dta")

gss <- gss |> filter(year >= 2016 & year <= 2021)

# Keep model variables; drop any missing data
gss <- gss[c("polviews3", "age", "woman", "race3", "college", "married", "parent",
  "faminc", "employed", "conserv")]
gss <- gss[complete.cases(gss[c("conserv", "age", "woman", "race3", "college",
  "married", "parent", "faminc")]), ]

# Treat binary/nominal variables as factors
gss <- gss |>
  mutate(across(c(polviews3, woman, race3, college, married, parent, employed), as_factor)) |>
  droplevels()

# 3 category political views var
pol3mod <- multinom(polviews3 ~ age + woman + race3 + college + married + parent +
  faminc + employed, data = gss, trace = FALSE)

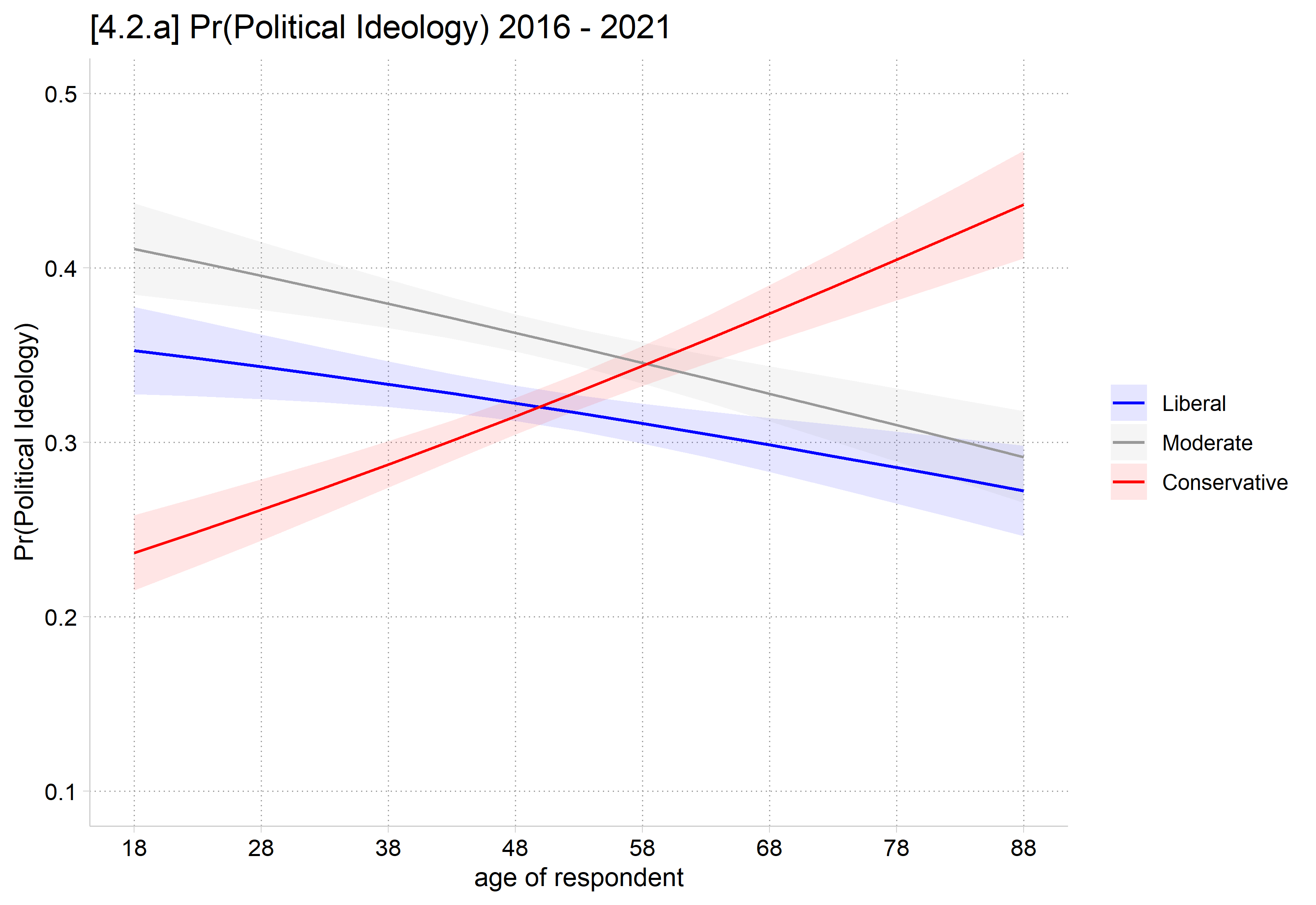

# 4.2.a
plot_predictions(pol3mod, by = c("age", "group"),
  newdata = datagrid(age = seq(18, 88, 5), grid_type = "counterfactual")) +
  scale_color_manual(values = c("blue", "gray60", "red")) +
  scale_fill_manual(values = c("blue", "gray60", "red")) +
  scale_x_continuous(breaks = seq(18, 88, 10)) +
  scale_y_continuous(breaks = seq(.1, .5, .1), limits = c(.1, .5)) +
  labs(title = "[4.2.a] Pr(Political Ideology) 2016 - 2021",
    x = "age of respondent", y = "Pr(Political Ideology)", color = NULL, fill = NULL)

Plots of small multiples

• The plot above includes each outcome on a single graph
  • In this case, it is still fairly easy to read
• The more outcome categories you have and the larger your CIs are, the less legible these graphs become (due to overlapping lines)
• An alternative approach is to plot “small multiples” which is legible even with many outcomes
  • I.e., The same type of graph repeated in separate panels
  • In this case, one panel for each outcome

Stata

Plots of small multiples in Stata

• Easy in Stata, just cumbersome:
  • Make a prediction for each outcome separately using the predict(outcome(#)) option on margins
  • Make the graph with marginsplot per usual
    • Include a title( ) to denote the outcome
    • Save each graph in memory via a name( ) option
  • Combine the graphs into one via graph combine

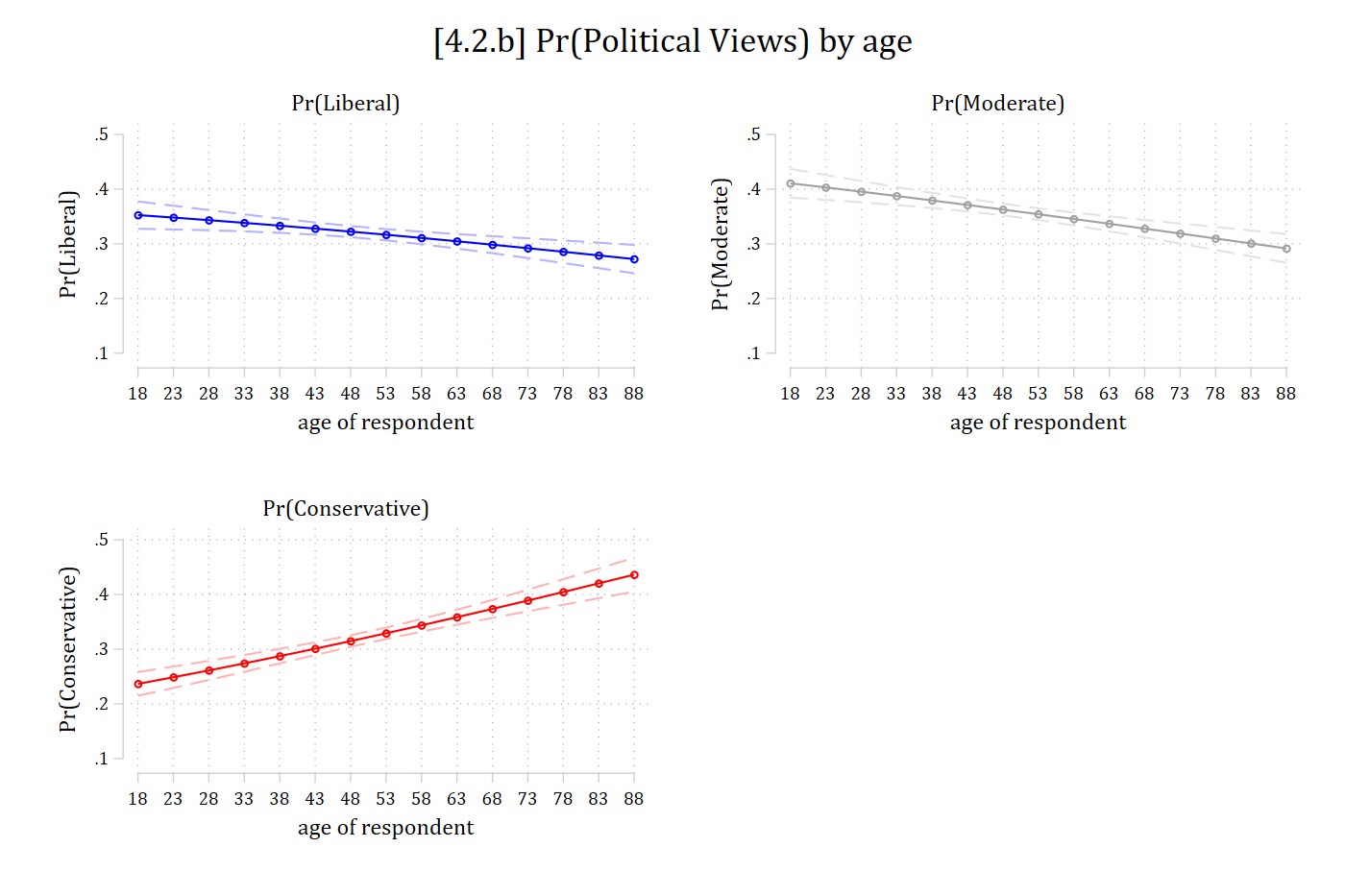

*4.2.b: same graph, but small multiples, with separate panels for each outcome
qui margins, at(age=(18(5)88)) predict(outcome(1))
marginsplot, title("Pr(Liberal)") name(pr_lib, replace) ///
    ytitle("Pr(Liberal)") ylab(0.1(0.1)0.5) ///
    plotopts(lcol(blue) mcol(blue)) ciopts(recast(rline) lpat(dash) lcol(blue*
.3))

Variables that uniquely identify margins: age

qui margins, at(age=(18(5)88)) predict(outcome(2))
marginsplot, title("Pr(Moderate)") name(pr_mod, replace) ///
    ytitle("Pr(Moderate)") ylab(0.1(0.1)0.5) ///
    plotopts(lcol(gs10) mcol(gs10)) ciopts(recast(rline) lpat(dash) lcol(gs10*
.3))

Variables that uniquely identify margins: age

qui margins, at(age=(18(5)88)) predict(outcome(3))
marginsplot, title("Pr(Conservative)") name(pr_con, replace) ///
    ytitle("Pr(Conservative)") ylab(0.1(0.1)0.5) ///
    plotopts(lcol(red) mcol(red)) ciopts(recast(rline) lpat(dash) lcol(red*.3)
)

Variables that uniquely identify margins: age

graph combine pr_lib pr_mod pr_con, ///
    title("[4.2.b] Pr(Political Views) by age")

R

• In R, use ggplot’s facet_wrap function

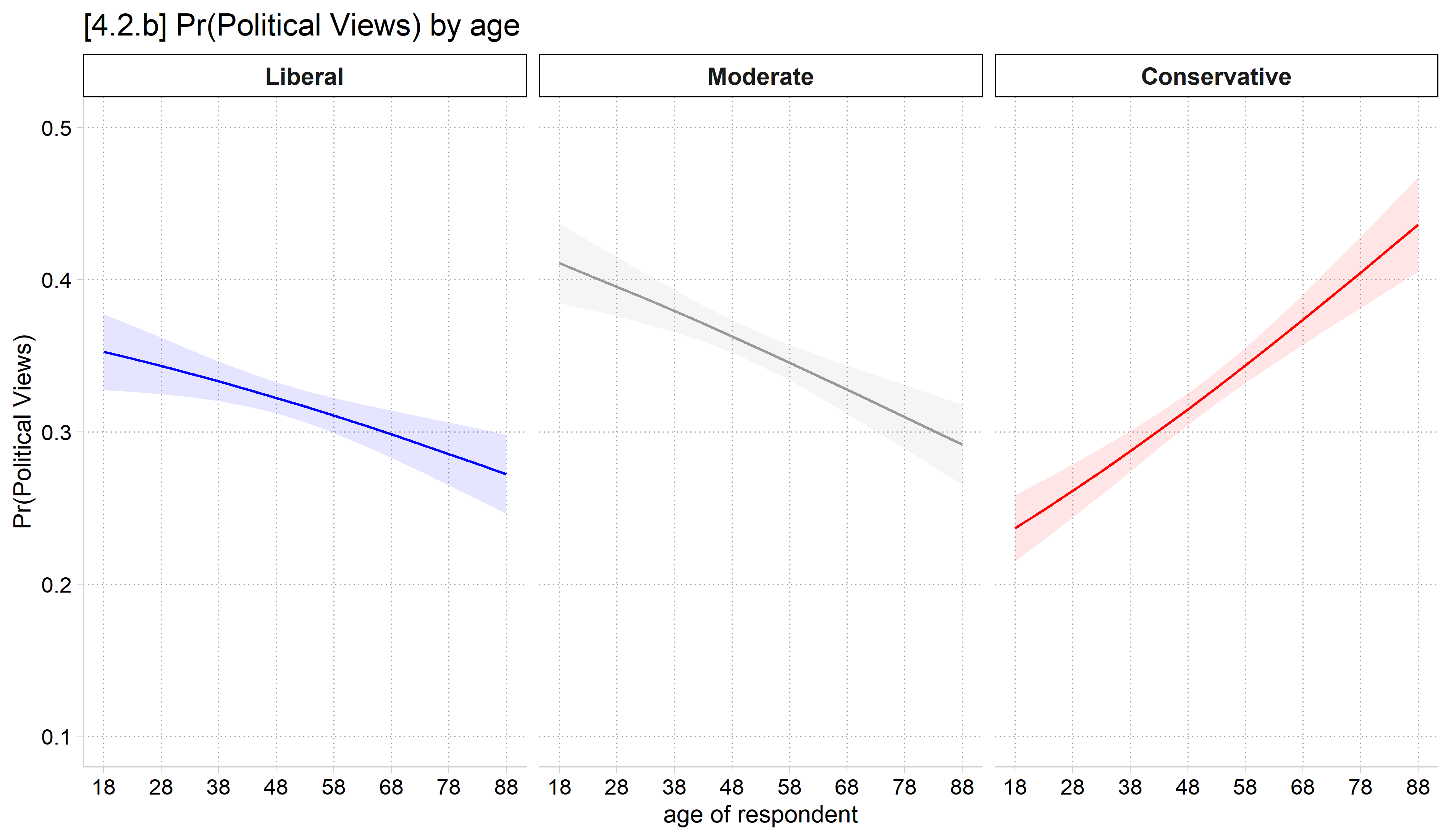

# 4.2.b: same graph, but small multiples, with separate panels for each outcome
plot_predictions(pol3mod, by = c("age", "group"),
  newdata = datagrid(age = seq(18, 88, 5), grid_type = "counterfactual")) +
  facet_wrap(~ group) +
  scale_color_manual(values = c("blue", "gray60", "red")) +
  scale_fill_manual(values = c("blue", "gray60", "red")) +
  scale_x_continuous(breaks = seq(18, 88, 10)) +
  scale_y_continuous(breaks = seq(.1, .5, .1), limits = c(.1, .5)) +
  labs(title = "[4.2.b] Pr(Political Views) by age",
    x = "age of respondent", y = "Pr(Political Views)") +
  theme(legend.position = "none")
