Appendix A2: Stata Appendix

usetdm command for course datasets

  • One of the commands that the “Stata setup do-file” will install for you is one written by me to easily access my class and workshop datasets called usetdm. This allows you to download any of the course datasets (which you can use for assignments and which many of the examples in the lecture notes are based on). This pulls the data from my GitHub site so you will need to be connected to the internet. To access any of the datasets for your assignments:
usetdm cda_ah4, clear
usetdm cda_gss, clear
usetdm cda_hrs, clear
  • Note there are other datasets I use throughout these notes that can also be downloaded using the usetdm command. You will see examples of these if you look through the lecture replication do-files

Descriptive statistics tables

  • Each of your assignments (#3 through 9) will include a question like this:

    Construct a table appropriate for a published article of the descriptive statistics for your model variables. Descriptive statistics tables must include: (a) an informative title, (b) means of all variables [proportions of binary variables and of nominal variable categories], (c) standard deviation of all continuous variables, (d) sample size, (e) a reasonable and consistent number of decimal points (2 or 3 is generally preferable), (f) numbers should be aligned by the decimal point, (g) variable names should not be used—instead use a substantive name (e.g. do not put edyrs in your tables—put “Years of Education”); often a well labeled variable provides all the information a reader needs—but if it does not (h) footnotes should be included under the table (e.g. if the measurement level of a variable is unclear or if categories of a variable require further explanation). Additional aspects of the table are up to you (e.g. if you want to report other statistics [min, max, median, etc.] you can include them in additional columns).

  • I include such a question as you should generally provide a descriptive statistics table in every quantitative article you write; you should also provide one if you are asking someone for help with an analysis

desctable command

  • I have made so many descriptive statistics tables in my lifetime—and been frustrated enough by the amount of time and fussiness it takes to make them look good and be effective—that I (along with Bianca Manago) wrote a Stata command desctable to automate the process
  • The desctable command will automatically accomplish all 8 requirements for good descriptive statistics tables described above

desctable description

  • From the help file:

desctable produces a descriptive (summary) statistics table. desctable treats continuous, binary, and nominal variables differently – providing statistics and labeled output most appropriate for the measurement level of the variable.

Factor syntax is required: binary and nominal variables must be entered into the variable list with the i. prefix. Variables without any prefix are assumed to be continuous.

desctable outputs the descriptive statistics table to Excel; it can easily be copied to Word without losing the formatting of the table.

desctable labels the rows of the table with the corresponding variable label. Categories of nominal variables are labeled with the value labels of the corresponding variable. Thus, the effectiveness of the default table depends on the effectiveness of the labels in the data (see label for details on adding variable and value labels to your data).

desctable wage age i.race i.union i.collgrad tenure i.occupation hours, ///
    filename("descriptivesEX1")

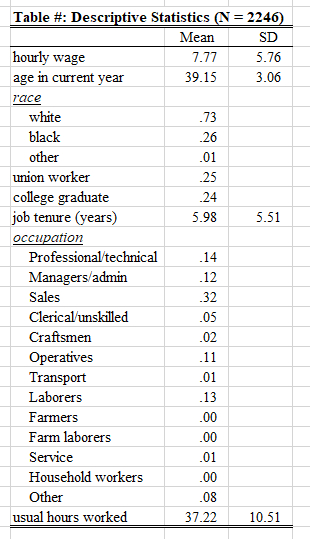

Descriptive statistics table made by desctable: means and standard deviations for continuous variables and proportions for each category of the binary and nominal variables.

Note the only required option is to specify a filename. The Excel file is saved into your working directory

Type pwd in Stata to see where your working directory is currently set

Change your working directory with the cd command or through File > Change Working Directory

I recommend having a working directory for each project you work on. E.g. Have a working directory (folder) specific to this class where datasets, graphs, and tables are saved

desctable wage age i.race i.union i.collgrad tenure i.occupation hours, ///
    filename("descriptivesEX2") stats(mean freq sd min max iqr median)

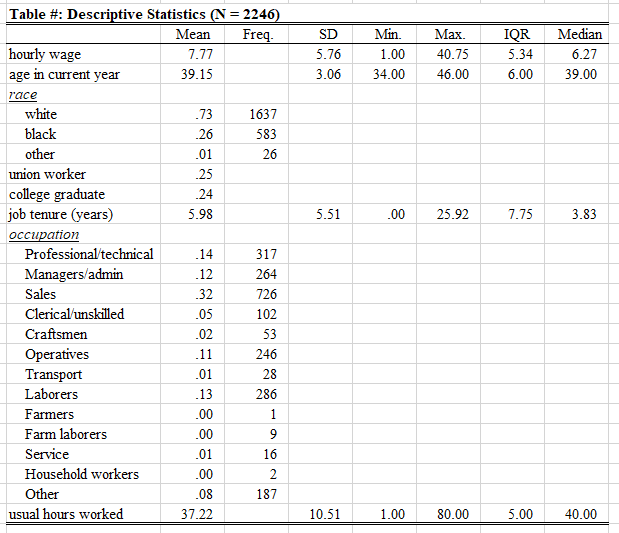

Descriptive statistics table made by desctable with additional columns for frequency, standard deviation, minimum, maximum, interquartile range, and median.

Type help desctable to read the help file which includes a list of all statistics desctable can calculate to include in the table

desctable wage age i.union i.collgrad tenure i.occupation hours, ///
    filename("descriptivesEX5") group(race)

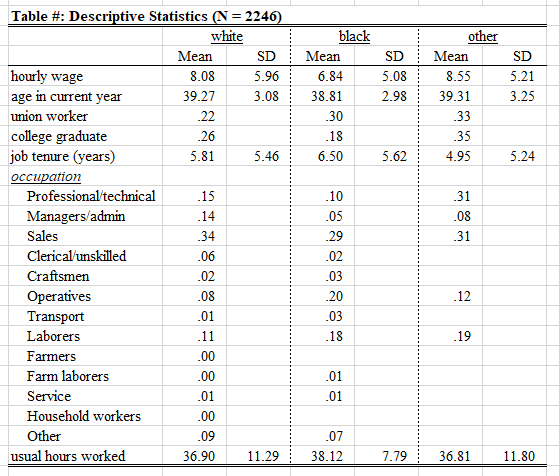

Descriptive statistics table made by desctable with separate columns of means and standard deviations for White, Black, and other respondents.

Use the group( ) option to calculate descriptive statistics over different nominal groups in the data

desctable options

  • Read the desctable help file (just type help desctable) to see other options—e.g. those needed to customize the appearance of the table
  • desctable also provides options for statistics when the data:

Stata graphics and the cleanplots graphics schemes

  • Stata’s default graphics scheme (e.g. colors, fonts, symbols, axis symbols, line and marker sizes, etc.) leaves much to be desired. However, with some small tweaks Stata can make excellent plots, graphics, and figures
  • I have written a graphing scheme called cleanplots that changes the Stata defaults for all graphics. In particular, it is written to implement data visualization best practices by default—limiting the amount of time you have to spend tweaking the graph to be maximally readable and usable
  • The cleanplots graphics scheme is automatically downloaded via the Stata setup do-file. If you want to tell your friends how to use it, it is available on my website: cleanplots

Below is an example of why you will probably want to use the cleanplots graphics scheme. Here is a marginsplot example for Stata’s default graphics scheme (s2color):

margins, at(orole=(0(1)10))
marginsplot

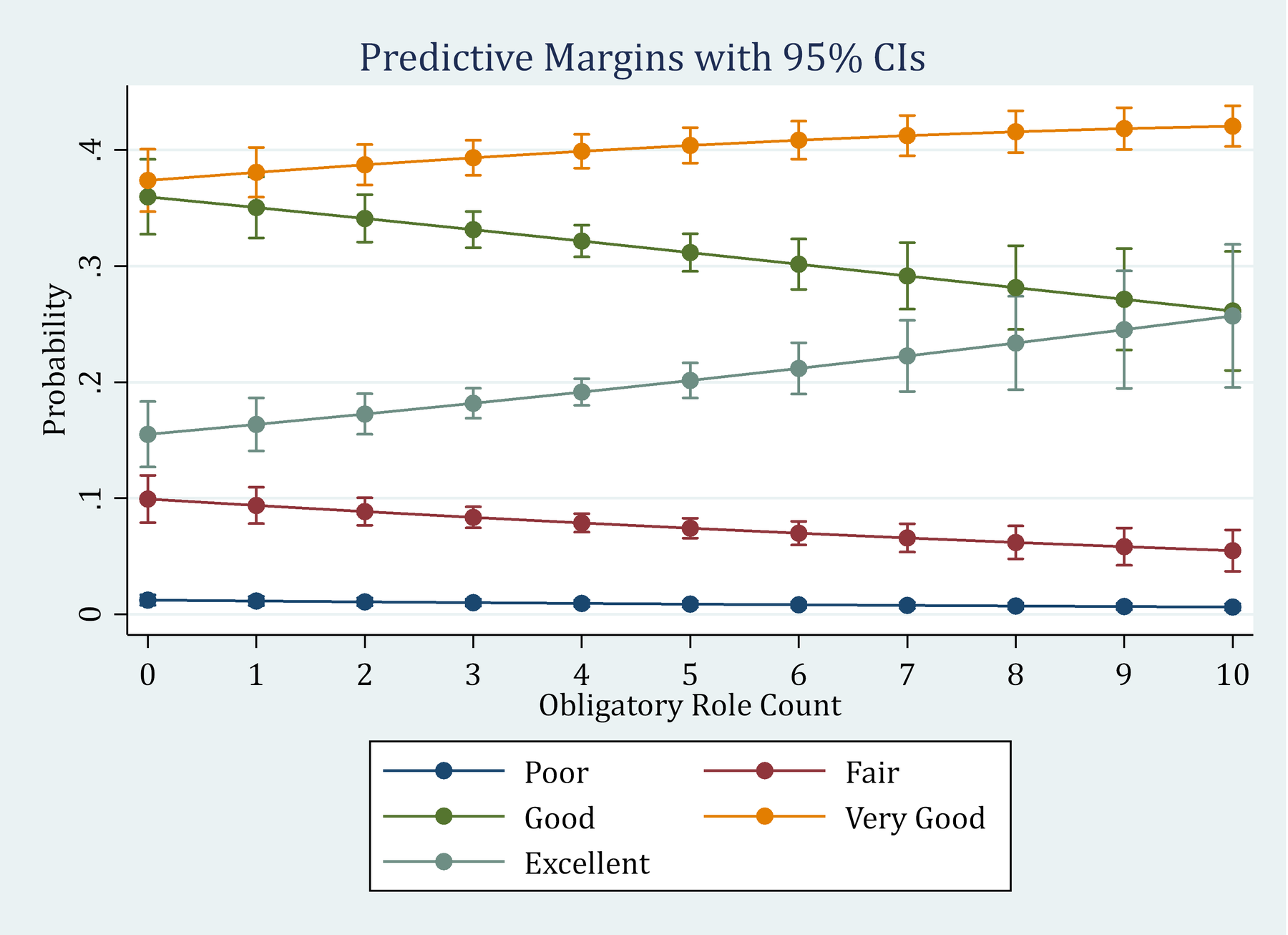

marginsplot with Stata's default s2color scheme: a blue-gray background, a boxed legend below the graph, and vertical axis labels.

cleanplots implements a host of features that draw on best data visualization practices (some of which are borrowed from the excellent black and white graphics scheme plainplots from Bischof (2017)). This allows you to make publication quality Stata graphics with very little effort. With cleanplots, many of the defaults you would change before via code are already changed for you

For example:

  • Default colors are easier to distinguish from each other and are more aesthetically pleasing
    • Default colors allow graphs to be printed in color or black and white
  • Marker shapes and line features (e.g. solid, dashed, etc.) better distinguish lines and ensure lines will be distinguishable if printing in black and white
  • All axis markers are horizontal – thus easier to read
  • A non-invasive light grid is on all plots
    • Both vertical and horizontal gridlines
  • The background of the plot is white
  • Legends are placed to right of the graph
  • And many more!
set scheme cleanplots, perm
marginsplot, recastci(rline) ciopt(lpat(dash) col(gs12))

The same marginsplot with the cleanplots scheme: a white background, light grid, horizontal axis labels, distinct colors and markers, and the legend to the right.

A couple of additional examples of Stata’s default s2color vs. cleanplots

Histograms:

hist vidtv, percent

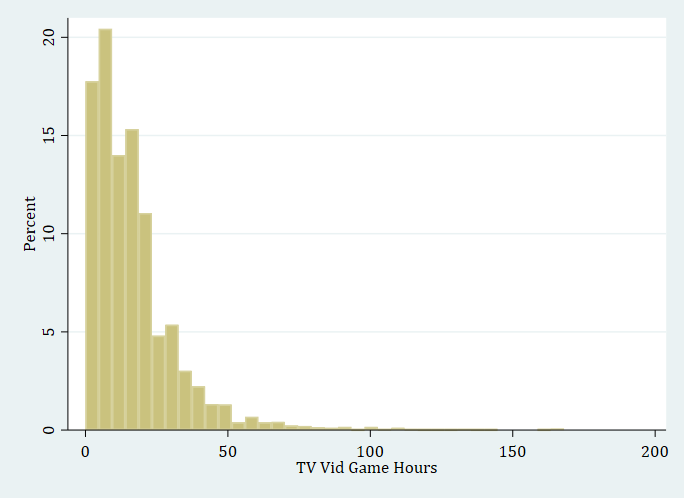

Histogram of TV and video game hours with the s2color scheme: khaki bars on a blue-gray background.

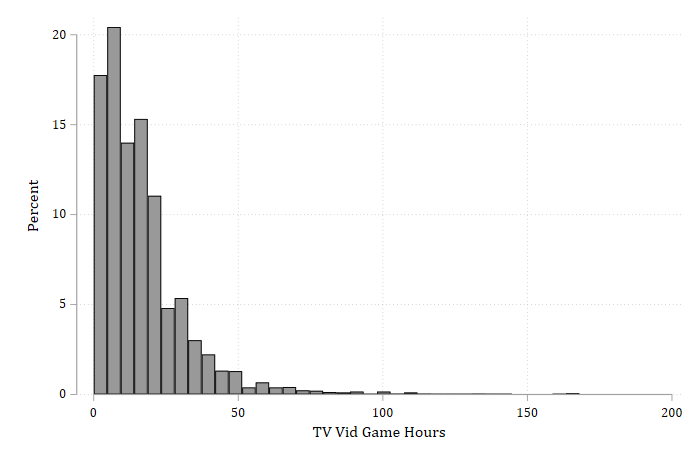

The same histogram with the cleanplots scheme: gray bars on a white background.

Color and grayscale images with cleanplots

  • Much thought/research went into the color scheme.
    • You only need one set of figures instead of needing a color version and a black and white version

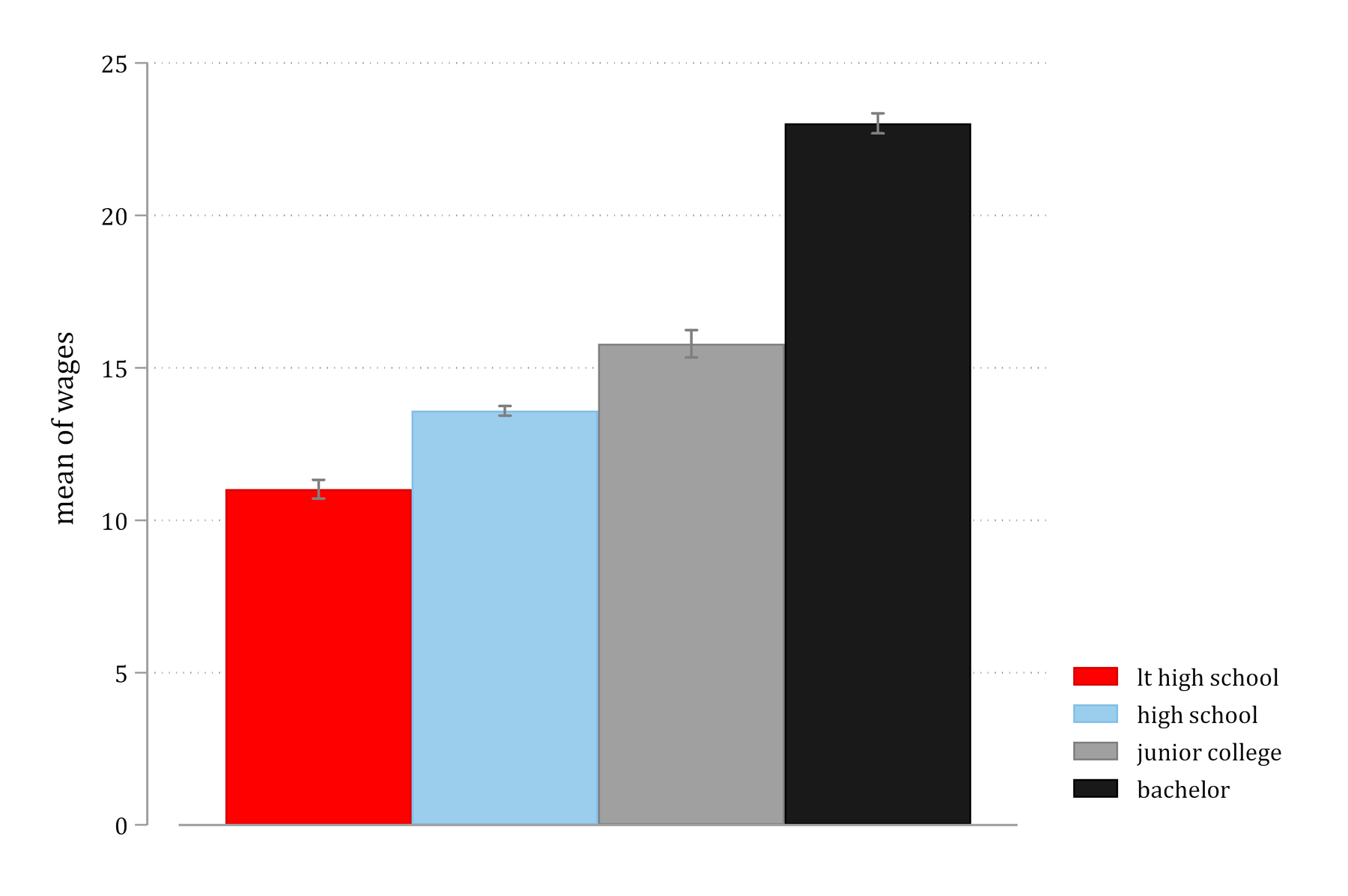

Bar graph of mean wages by education with the cleanplots colors: red, light blue, gray, and black.

The same bar graph printed in grayscale: the four bars are still easy to tell apart.

marginsplot with the cleanplots colors.

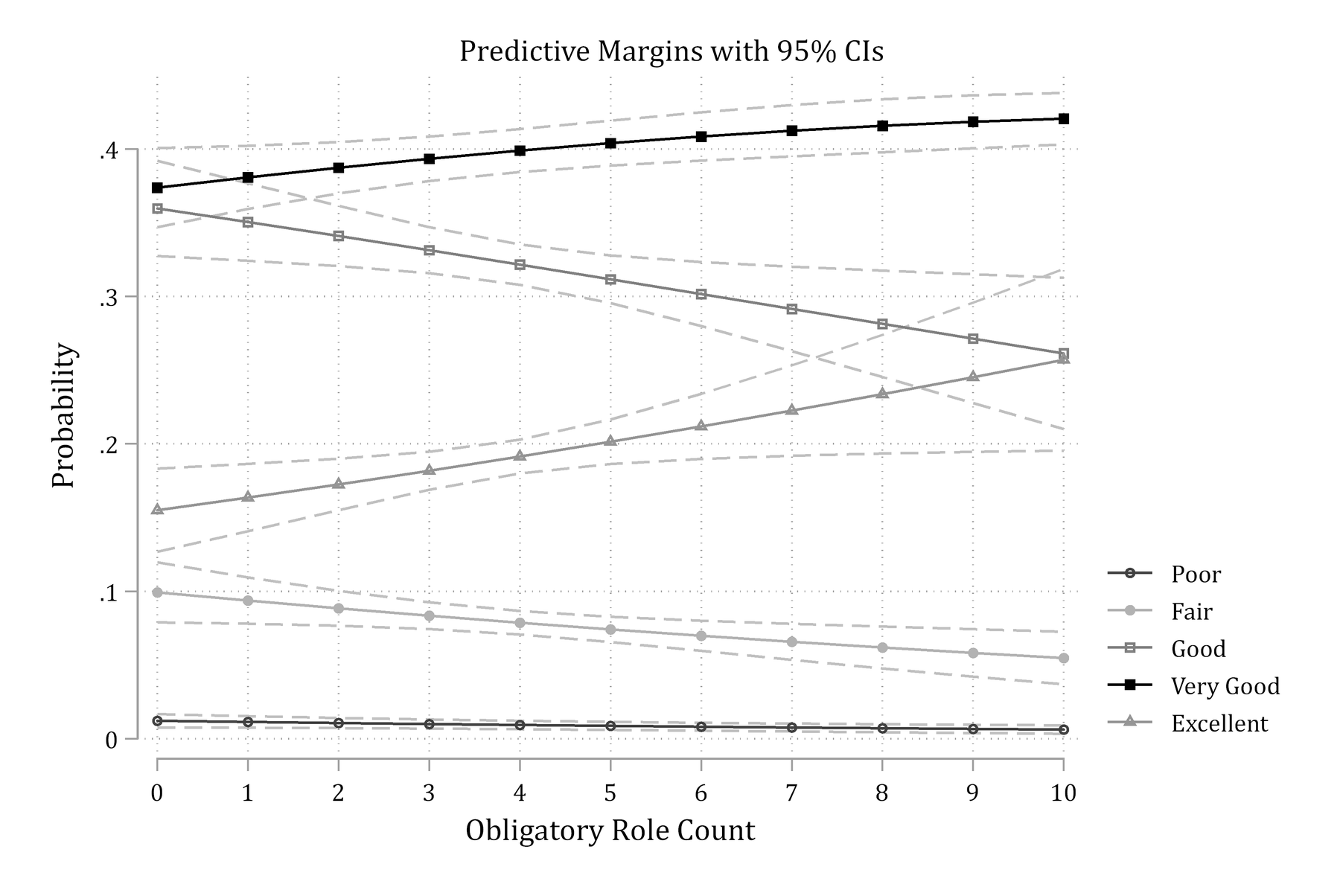

The same marginsplot printed in grayscale: the lines are still distinguishable by shade and marker.

Creating figures considerate of colorblindness

  • About 5% of the population has some form of colorblindness (red/green being the most common which is why you should always avoid having red and green together on your figure)
    • This excellent website Coloring for Colorblindness lets you check your color schemes to see how they will be viewed for those who are colorblind
      • Below is an example for how the first four default cleanplots colors look to individuals with various types of colorblindness

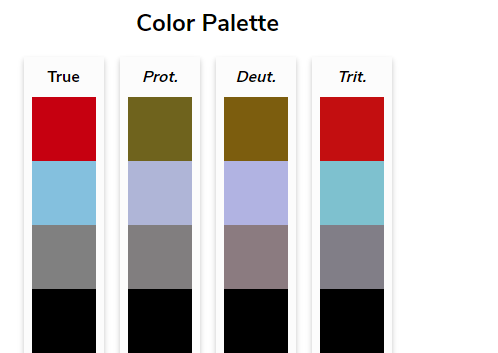

The first four cleanplots colors as seen with typical vision and with protanopia, deuteranopia, and tritanopia: the four colors stay distinct.

The first four cleanplots colors as seen with deuteranomaly.
